Custom electroplating processes for copper busbars delivered to spec with controlled thickness, quality adhesion, and fast turnaround for OEM and supplier production.
What Is Copper Busbar Plating?
Copper busbar plating is the application of a thin metal coating – such as tin, silver, nickel, or gold onto a copper busbar to improve corrosion resistance, conductivity, and contact reliability. It helps prevent oxidation, maintain low contact resistance, and enhance overall electrical performance in power distribution systems.
Why choose Karas for Copper busbar plating
- High volumes with fast lead times
- Wide dimensions up to 4.2m
- Custom plating solutions
- Single and dual layer plating
- High quality finishes
- Technical support Team
What are copper busbars plated with
We offer a wide range of coatings for copper busbars, all dependent on customer needs and requirements, including custom micron thicknesses. Where required, combination finishes such as nickel underplate with tin, as well as other multi-layer systems, can also be specified to meet specific performance or environmental demands. Please contact us to discuss your requirements. We can plate your copper busbars with:
Tin plating
Tin plating is one of the most widely used finishes for copper busbars in power distribution and control equipment. It provides effective protection against oxidation and corrosion, delivers a soft, conformal, solderable surface, and helps maintain stable contact resistance over the service life of the assembly.
Both bright and dull tin finishes are available, with dull tin generally preferred for soldered connections and high‑reliability terminations. Tin coatings also offer good lubricity and anti‑galling behaviour for bolted joints, making them suitable for busbar assemblies that are installed, torqued and periodically retightened in service.
When it comes to cost-effectiveness, tin plating is one of the more economical surface finishing options for copper bus bars.
Silver plating
Silver plating is an ideal surface finish process for high‑current or high‑performance busbar applications where very low contact resistance and excellent conductivity are required. Silver‑plated busbars demonstrate reduced voltage drop and lower temperature rise at equivalent load compared with bare unplated busbars, which supports higher current densities and improved thermal performance.
Silver also offers good resistance to tarnish and many industrial factors such as chemicals, making it a proven choice for demanding environments, including power generation, transmission and critical backup systems.
When copper busbar manufacturers opt for our silver plating processes, they are guaranteed 99.9% silver purity, which is ideal for industrial applications as it provides optimal performance, efficiency, and conductivity.
Nickel plating
Often used as an undercoat in dual layer electroplating processes for busbars, Nickel plating creates a hard, corrosion‑resistant barrier. This helps prevent diffusion between the copper substrate and the top plated material, improving long‑term stability of electrical and mechanical performance.
Nickel‑plated or nickel‑underplated busbars offer enhanced durability in aggressive environments and are well suited to applications such as electric vehicles (EVs), photovoltaic systems, rail, and other high‑current or high‑cycle‑duty installations.
Use of copper busbars

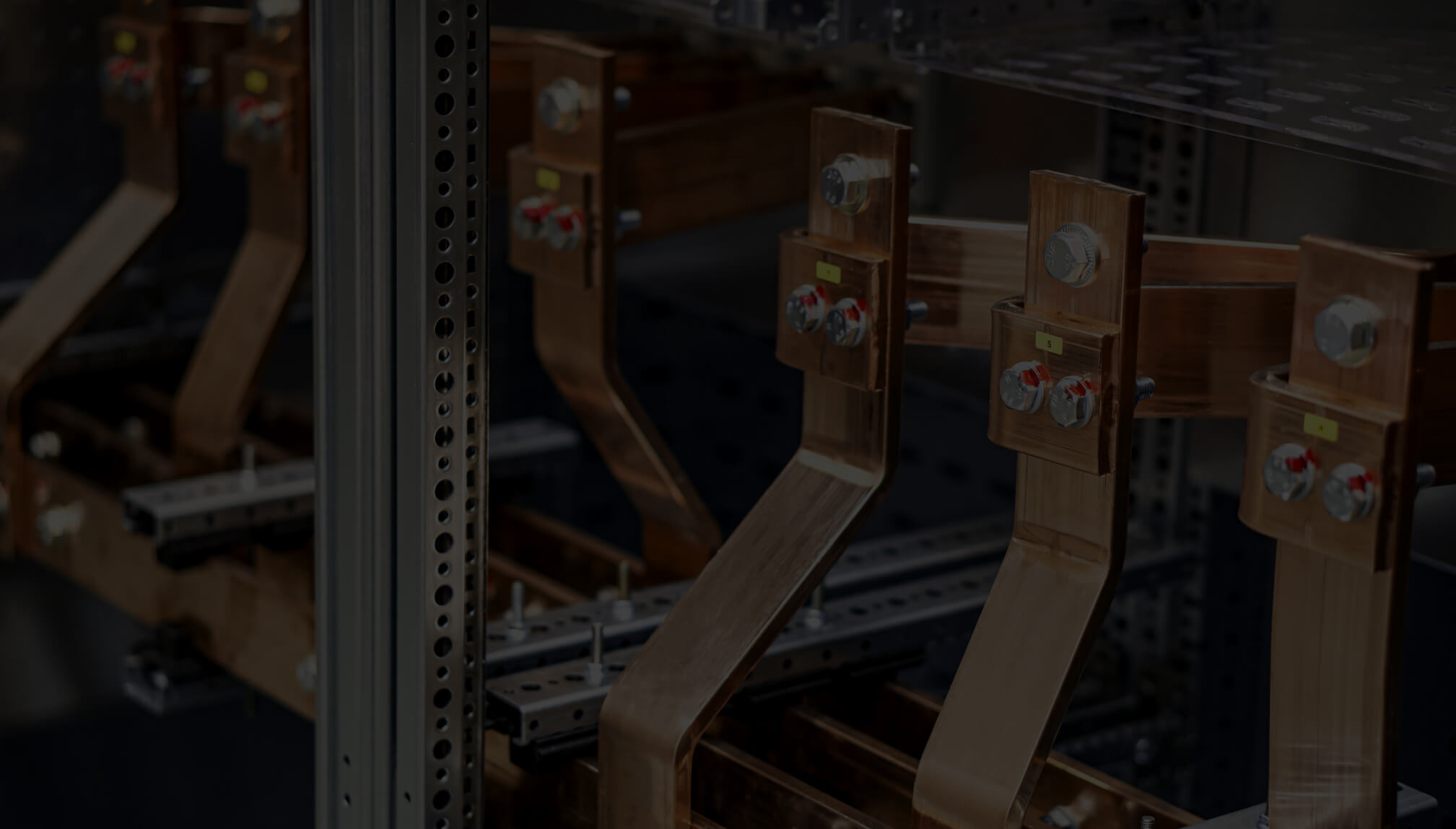

Copper busbars are electrical conductors used to distribute power efficiently within switchgear, panelboards, busway systems and other electrical systems. Over the years, manufacturers have increasingly moved from cables to busbars. Compared with cables, busbars can offer lower impedance, reduced energy losses, improved thermal behaviour and more compact routing, which is particularly advantageous in high‑power or space‑constrained installations.
Copper remains the reference material for many busbar applications due to its high conductivity, mechanical robustness and ease of fabrication, although aluminium busbars are increasingly used in some sectors where weight and raw material cost are critical factors.
Why electroplate copper busbars
While bare copper busbars are used in some applications, they are prone to oxidation over time. Oxidation causes the formation of an oxide layer, which affects conductivity, leads to heat build-up, and causes reliability issues over time if not managed.
- Reduce oxidation – Electroplating processes coatings such as tin, silver, nickel or gold act as protective barriers, reducing the formation of copper oxides and helping to maintain stable, low‑resistance interfaces.
- Solderability – Electroplated busbars are easier to solder, making them particularly suitable for switchgear assemblies, in fact any type of busbar assembly. For example, Tin‑ and silver‑plated busbars offer excellent solderability, making them well suited to busbar assemblies with soldered connections, terminations or components.
- High temperatures – Appropriate plating systems support higher permissible operating temperatures at the contact surface and more stable contact resistance under thermal cycling, contributing to improved thermal management and service life of the assembly.
